AIRCRAFT DIMENSIONS & WEIGHT

	Length	6.03 m
	Wing span	10.05 m
	Max height	2.30 m
	Wheel track	1.50 m
	Wheel base	1.70 m
	Empty weight	268 Kg (Jabiru UK version)

GENERAL CONFIGURATION:

• 2-SEATER, SIDE - BY - SIDE.

• CONVENTIONAL 3 AXIS CONTROLS.

• AILERONS, ELEVATOR & RUDDER.

• DUAL CONTROLS.

• NOSE MOUNTED TRACTOR ENGINE. HIGH WING.

• TRICYCLE LANDING GEAR, WITH SPRING SUSPENSION.

• STEERABLE NOSE WHEEL, LINKED TO RUDDER PEDALS.

• TOE OPERATED DIFFERENTIAL BRAKES.

• ENCLOSED COCKPIT, LEXAN WINDSCREEN, ENCLOSED FUSELAGE. ELEVATOR TRIM.

• "DUC" CARBON PROPELLER.

• ELECTRIC SELF STARTER.

• ELECTRIC PRIMER FUEL PUMP.

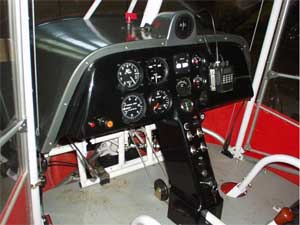

STANDARD INSTRUMENTATION:

• TACHOMETER.

• CYLINDER HEAD TEMPERATURE.

• AIR SPEED INDICATOR.

• TURN & SLIP INDICATOR ( BALL ).

• ALTIMETER AND COMPASS

• BATTERY CHARGE INDICATOR.

STANDARD ENGINE SPECS:

• 85 BHP, 4 CYLINDERS, NATURALLY AIR COOLED, JABIRU 2200 MADE IN AUSTRALIA.

• DOUBLE ELECTRONIC IGNITION, WITH 2 PLUGS PER CYLINDER.

• SINGLE BING CARBURETOR
